| विनिर्देश | विवरण |
| मिश्र धातु | 3003 अल्युमीनियम |
| गुस्सा | एच24 |
| मोटाई | 140माइक्रोन |
| चौड़ाई | 100-1600 मिमी |
| सतह खत्म | Coating Process |
As industries increasingly demand lightweight, जंग रोधी, and highly formable materials, 140माइक्रोन 3003 H24 coated aluminum foil has become an important engineering material in packaging, निर्माण, इन्सुलेशन, एचवीएसी सिस्टम, घर का सामान, और औद्योगिक विनिर्माण.
Combining the excellent corrosion resistance of 3003 एल्यूमीनियम मिश्र धातु, the balanced mechanical properties of the H24 स्वभाव, and the enhanced protection provided by specialized coating systems, this material offers an optimal combination of durability, प्रोसेस, और लागत दक्षता.
At a thickness of 140 माइक्रोन (0.14 मिमी), the foil occupies a unique position between traditional aluminum foil and thin-gauge aluminum sheet.
It provides greater structural stability than ultra-thin foils while maintaining the flexibility and lightweight advantages associated with aluminum materials.
The combination of alloy composition, temper condition, and coating technology makes 140μm 3003 H24 coated aluminum foil an ideal material for applications requiring a balance between strength, जंग प्रतिरोध, प्रपत्र, and aesthetic appearance.

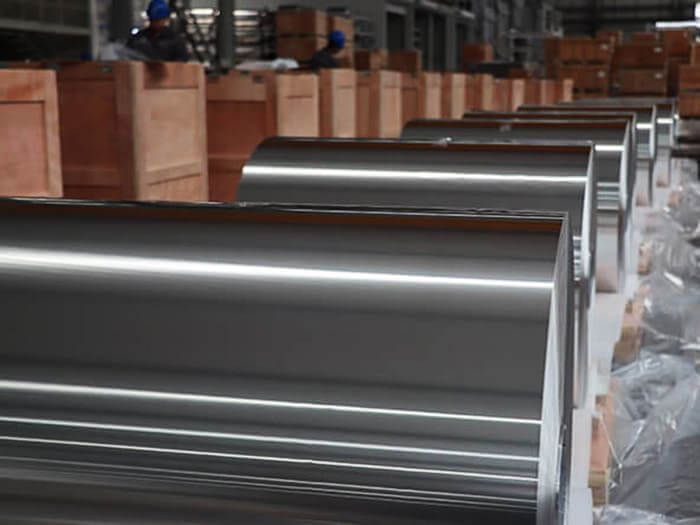

140माइक्रोन 3003 H24 Coated Aluminum Foil
140माइक्रोन 3003 H24 coated aluminum foil is a precision-rolled aluminum product manufactured from AA3003 aluminum alloy, processed into the H24 temper condition, and subsequently coated with functional or decorative coatings to improve surface performance.
Thickness plays a critical role in determining the mechanical behavior and application suitability of aluminum foil.
Thickness Conversion
| इकाई | कीमत |
|---|---|
| Micrometers | 140 माइक्रोन |
| Millimeters | 0.14 मिमी |
| इंच | 0.0055 में |
पर 140 माइक्रोन, the material is substantially thicker than conventional packaging foil, which typically ranges from 6–50 μm.
3003 एल्यूमीनियम पन्नी का है अल-Mn (Aluminum-Manganese) alloy family and is one of the most widely used aluminum alloys globally.
The alloy contains approximately 1.0–1.5% manganese, which significantly increases strength compared with commercially pure aluminum.
Typical Chemical Composition
| तत्व | सामग्री (%) |
|---|---|
| अल्युमीनियम (अल) | संतुलन |
| मैंगनीज (एम.एन.) | 1.0–1.5 |
| ताँबा (घन) | 0.05-0.20 |
| सिलिकॉन (और) | ≤0.60 |
| लोहा (फ़े) | ≤0.70 |
| जस्ता (Zn) | ≤0.10 |
Temper designation is critical in determining aluminum performance.
Definition of H24
According to aluminum temper classifications:
व्यवहारिक अर्थों में, 3003-H24 provides a balance between strength and ductility.
It is stronger and stiffer than annealed 3003-O, but more formable than harder tempers such as H26 or H18.
| गुस्सा | Strength Level | प्रपत्र | विशिष्ट उपयोग |
|---|---|---|---|
| 3003-हे | कम | उत्कृष्ट | Deep drawing, soft forming |
| 3003-एच14 | मध्यम | अच्छा | General sheet and foil forming |
| 3003-एच22 | कम मध्यम | बहुत अच्छा | Moderate forming applications |
| 3003-एच24 | मध्यम ऊँचाई | अच्छा | लेपित पन्नी, पलकों, semi-rigid formed parts |
| 3003-एच26 | उच्च | मध्यम | Stiffer parts with limited forming |
| 3003-एच18 | उच्च | सीमित | High stiffness, minimal forming |
H24 is often selected when the foil must hold shape, resist deformation, and still tolerate forming or punching without cracking.

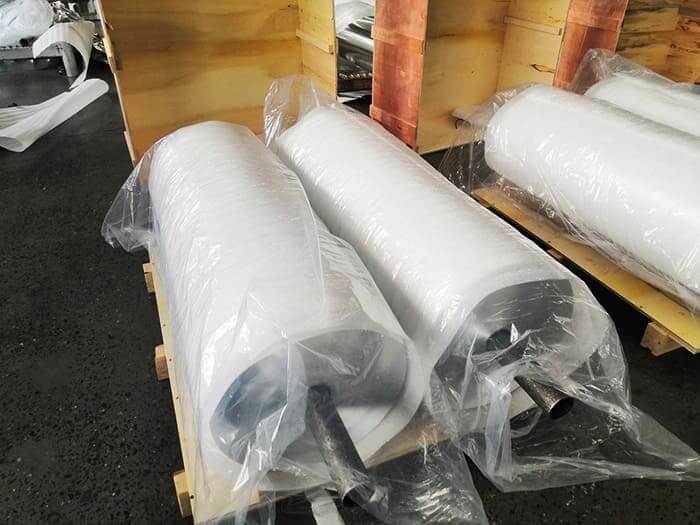

140माइक्रोन 3003 H24 Coated Aluminum Foil Packaged by Huasheng
The coating transforms the aluminum substrate into an application-specific material.
Depending on the end use, the coating may provide corrosion resistance, food-contact protection, heat-sealing performance, सजावट, इन्सुलेशन, or bonding compatibility.
| कोटिंग का प्रकार | Main Function | विशिष्ट अनुप्रयोग |
|---|---|---|
| एपॉक्सी कोटिंग | Corrosion protection and adhesion | Lids, caps, industrial components |
| PE coating | Moisture resistance and heat sealing | खाद्य डिब्बाबंदी, laminated foil |
| PP coating | Higher heat resistance than PE | Retort trays, hot-fill packaging |
| Polyester coating | Surface durability and decoration | सजावटी पैनल, लेबल, लेमिनेट्स |
| हीट-सील लाह | Controlled sealing performance | डेयरी ढक्कन, ट्रे, sealing membranes |
| Food-grade lacquer | Food-contact protection | कंटेनरों, पलकों, meal trays |
| वस्तु | Typical Specification / Reference Range |
|---|---|
| प्रोडक्ट का नाम | 140माइक्रोन 3003 H24 coated aluminum foil |
| मिश्र धातु | 3003 |
| गुस्सा | एच24 |
| मोटाई | 0.140 मिमी / 140माइक्रोन |
| मोटाई सहनशीलता | Commonly ±3–5%, or customer-specified |
| चौड़ाई | Custom slit width, commonly 50–1600 mm |
| भीतरी व्यास | 76 मिमी या 152 मिमी, customer-specified |
| बहरी घेरा | According to roll weight and packing requirement |
| Surface condition | साफ, लेपित, flat, free from serious defects |
| Coating side | Single-side or double-side coating |
| कोटिंग का प्रकार | epoxy, पॉलिएस्टर, एक्रिलिक, पीयू, हीट-सील लाह, hydrophilic, hydrophobic, भजन की पुस्तक |
| कोटिंग का वजन | Often 1–10 g/m² per side, depending on coating function |
| रंग | स्पष्ट, सोना, सफ़ेद, रंगीन, or customer-specified |
| इलाज | Degreased, pretreated, लेपित, cured |
| पैकेजिंग | Wooden case or export seaworthy packing |
| Typical supply form | रोल, coil, चादर, उभरी हुई पन्नी, coated stock |
For critical applications such as food-contact lids, pharmaceutical-related sealing foil, or HVAC fin stock, coating specifications should include adhesion, जंग प्रतिरोध, sealing performance, and compliance declarations.
The performance of 140μm 3003 H24 coated aluminum foil is primarily determined by the mechanical characteristics of the 3003 alloy and the strengthening effect of the H24 temper.
| संपत्ति | विशिष्ट मूल्य |
|---|---|
| तन्यता ताकत | 145–195 MPa |
| नम्य होने की क्षमता | ≥115 MPa |
| बढ़ाव | 4–10% |
| कठोरता (एचवी) | 45-60 |
| लोचदार मापांक | 69 जीपीए |
| संपत्ति | कीमत |
|---|---|
| घनत्व | 2.73 जी/सेमी³ |
| ऊष्मीय चालकता | 180–210 W/m·K |
| इलेक्ट्रिकल कंडक्टीविटी | 40–45% IACS |
| पिघलने की सीमा | 643–654°C |
| Thermal Expansion Coefficient | 23.6 × 10⁻⁶/K |
| परावर्तन | 80–88% |
140माइक्रोन 3003 H24 coated aluminum foil performs well when the application needs both strength and processability.
Main performance advantages include:

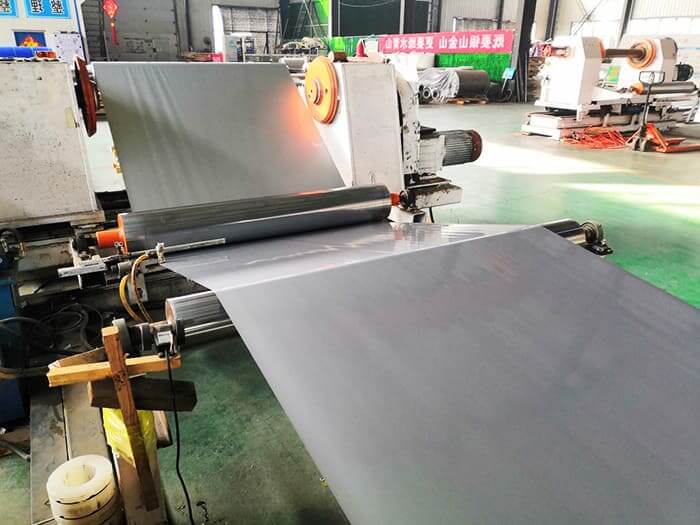

Coated Process of Aluminum Foil
Production begins with aluminum ingots and controlled alloying additions. Manganese gives 3003 its improved strength and corrosion resistance.
After casting and homogenization, the material passes through hot rolling and cold rolling to approach the target gauge.
The mill controls cold reduction and annealing to achieve H24 temper.
This step matters because excessive hardness may reduce formability, while insufficient hardness may cause poor shape retention.
Before coating, the foil surface needs proper cleaning and pretreatment.
तेल अवशेष, oxide instability, धूल, or moisture can weaken coating adhesion.
The coating may be applied by roller coating, lacquering, or lamination-related processes.
After application, controlled drying and curing create the required adhesion, FLEXIBILITY, और रासायनिक प्रतिरोध.
The coated foil is slit to the required width. Accurate slitting reduces burrs, edge cracks, and winding defects.
Stable tension control protects surface quality and prevents telescoping or coil deformation.
Inspection usually covers thickness, चौड़ाई, समतलता, सतह दोष, coating adhesion, पिन्होल, यांत्रिक विशेषताएं, and packaging quality.

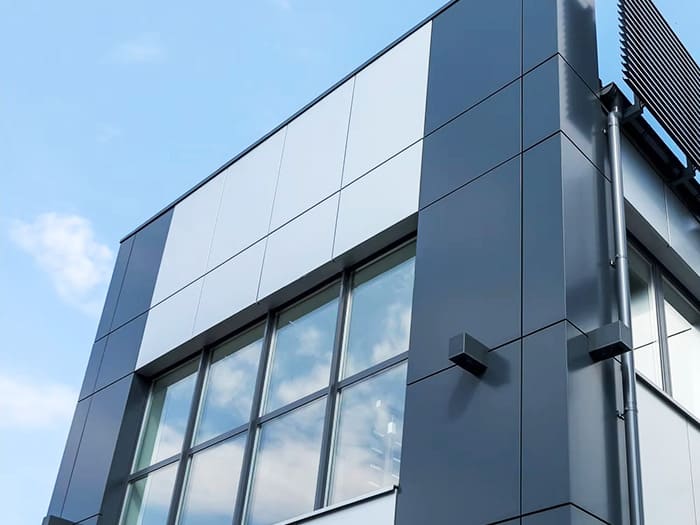

140माइक्रोन 3003 H24 Coated Aluminum Foil for Construction
की बहुमुखी प्रतिभा 140माइक्रोन 3003 H24 coated aluminum foil stems from its balanced mechanical properties, उत्कृष्ट संक्षारण प्रतिरोध, attractive surface finish, and ease of fabrication.
Its 140μm thickness provides greater rigidity than conventional foil while remaining lightweight and highly processable.
As a result, this material is widely used across construction, एचवीएसी, पैकेजिंग, परिवहन, appliance manufacturing, और औद्योगिक क्षेत्र.
The construction industry is one of the largest consumers of coated aluminum products.
Because aluminum possesses excellent thermal conductivity and reflectivity, 140माइक्रोन 3003 H24 coated foil is extensively used in HVAC applications.
Modern household appliances increasingly utilize coated aluminum components because of their durability and appearance.
Although thinner aluminum foils dominate flexible packaging, 140μm coated aluminum foil is frequently used in semi-rigid and specialty packaging applications.

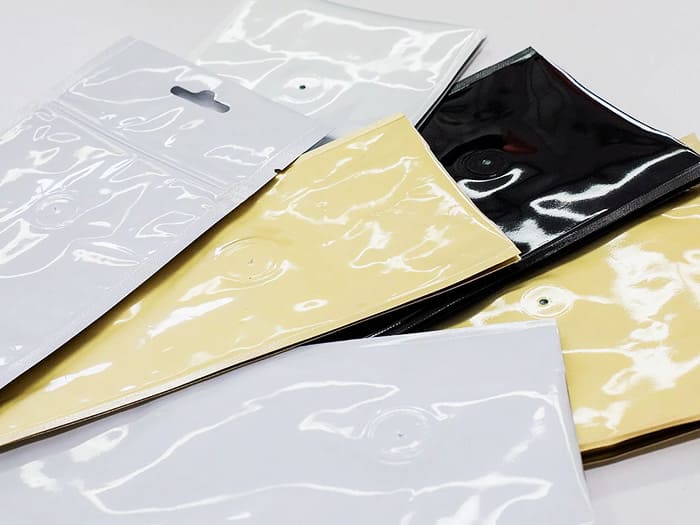

प्रयुक्त पैकेजिंग 3003 लेपित एल्यूमीनियम पन्नी
The transportation sector increasingly favors lightweight materials to improve energy efficiency.
Industrial manufacturers often require materials that combine durability with corrosion resistance.
The excellent surface quality of coated aluminum foil makes it suitable for visual applications.
The renewable energy sector has become an emerging market for coated aluminum materials.
| संपत्ति | 3003 H24 Coated Aluminum Foil | 1050 एल्यूमीनियम पन्नी | 5052 एल्यूमीनियम पन्नी | Galvanized Steel | स्टेनलेस स्टील 304 |
|---|---|---|---|---|---|
| घनत्व (जी/सेमी³) | 2.73 | 2.71 | 2.68 | 7.85 | 8.00 |
| तन्यता ताकत (एमपीए) | 145–195 | 80–120 | 210–280 | 270–500 | 520–720 |
| जंग प्रतिरोध | उत्कृष्ट | उत्कृष्ट | उत्कृष्ट | मध्यम | उत्कृष्ट |
| प्रपत्र | उत्कृष्ट | उत्कृष्ट | अच्छा | मध्यम | मध्यम |
| ऊष्मीय चालकता (डब्ल्यू/एम·के) | 180–210 | 220-230 | 130-150 | 50 | 15 |
| वज़न | बहुत कम | बहुत कम | बहुत कम | उच्च | उच्च |
| Surface Coating Compatibility | उत्कृष्ट | उत्कृष्ट | उत्कृष्ट | अच्छा | मध्यम |
| लागत | मध्यम | कम | उच्च | कम | उच्च |
हेनान हुआशेंग एल्युमीनियम कंपनी, लिमिटेड. is an aluminum supplier from Henan, चीन, offering aluminum sheet, थाली, coil, पट्टी, and foil products for packaging and industrial applications.
For buyers of 140माइक्रोन 3003 H24 coated aluminum foil, supplier capability should focus on stable alloy control, coating reliability, export packaging, and technical communication.
Huasheng’s value for this product can be presented through practical buyer needs:
For best results, buyers should share the final application, forming depth, sealing temperature, coating requirement, and equipment width before ordering.
140माइक्रोन 3003 H24 coated aluminum foil is a practical, high-value material for packaging, container, ढक्कन, laminate, और औद्योगिक अनुप्रयोग.
इसका 0.14 मिमी मोटाई provides stronger puncture resistance and better shape retention than thin foil. 3003 Al-Mn alloy offers corrosion resistance and moderate strength.
इसका H24 स्वभाव balances stability and formability. अंत में, its coating system adds the exact function required by the final product, whether that means heat sealing, food-contact protection, सजावट, या संक्षारण प्रतिरोध.
निर्माताओं के लिए, the best purchasing decision depends on more than thickness and price. कोटिंग का प्रकार, आसंजन, temper stability, सतही गुणवत्ता, slitting accuracy, and supplier support all determine real production performance.
It is a 0.14 mm thick coated aluminum foil made from 3003 aluminum alloy in H24 temper. It is used for containers, पलकों, ट्रे, लेमिनेट्स, sealing membranes, and industrial coated foil products.
हाँ. 140μm = 0.14 मिमी, or about 5.51 एमआईएल.
3003 aluminum offers better strength than pure aluminum, अच्छा संक्षारण प्रतिरोध, and reliable formability. It suits packaging, कंटेनरों, पलकों, and coated foil applications.
H24 means the aluminum has been strain-hardened and partially annealed. It provides a useful balance of strength, FLEXIBILITY, and dimensional stability.
हाँ, if it uses a suitable food-grade coating and meets the required food-contact standards.
पी.ई, पीपी, or heat-seal lacquer may work, depending on sealing temperature, food type, packaging structure, and equipment conditions.
Aluminum itself is recyclable, but coated foil recycling depends on coating type, contamination level, and local recycling systems. Clean industrial scrap usually has better recycling value.
