1. Introduction

Aluminum sheets for boat decking combine lightweight structure, corrosion resistance, ease of fabrication and recyclability.

Their adoption spans recreational boats, commercial workboats, ferries and military craft. But “aluminum deck” is not one thing — performance depends on alloy, temper, thickness, pattern/finish, fabrication practice and corrosion protection strategy.

This article expands each of those elements with practical data, design guidance, testing/standards references and procurement-ready specifications so naval architects, marine engineers and shipyards can make evidence-based choices.

For exposed saltwater decks where load and corrosion resistance matter, choose a 5xxx-series alloy (e.g., 5083 or 5086) in a marine temper (H116/H321) with thickness selected for stiffness + local loading and with suitable slip control (diamond plate or non-skid topcoat).

Aluminum Sheets For Boat Decking

2. Why Aluminum Sheets for Boat Decking? Core Advantages

• Lightweight: Density of 2.7 g/cm³ vs. wood (0.6-1.0 g/cm³ but less rigid) and steel (7.85 g/cm³) – reduces hull weight by 15-25% (improves fuel efficiency by 8-12%, BoatUS Foundation).
• Corrosion Resistance: Naturally forms protective oxide layer; marine-grade alloys (5000/6000 series) resist saltwater, humidity, and chemical exposure (5x longer lifespan than uncoated steel).
• Strength-to-Weight Ratio: Superior rigidity vs. fiberglass (tensile strength 110-380 MPa depending on alloy) – supports heavy loads (e.g., fishing gear, passengers) without deformation.
• Low Maintenance: No sanding, staining, or sealing (unlike wood); resistant to rot, mold, and UV degradation.
• Sustainability: 100% recyclable (recycling uses 95% less energy than primary production, Aluminum Association) – aligns with marine industry eco-regulations.
• Aesthetic Versatility: Customizable finishes (brushed, anodized, powder-coated) and textures – matches diverse boat designs.

3. Characteristics of Aluminum Sheets for Boat Decking

Alloy Selection: Marine-Specific Alloys

5000-series aluminum sheet is preferred due to superior chloride-based corrosion resistance, an essential factor for marine exposure.

Tempers (Mechanical Condition)

Tempers define strength and ductility:

• O (annealed): maximum ductility, easiest to form and bend; lowest strength. Good for complex shapes but may require thicker stock.
• H32 / H34 / H111: strain-hardened tempers with increased strength while retaining some formability.
• H116 / H321 (marine stabilized tempers): heat/strain treatment optimized to reduce susceptibility to stress corrosion and intergranular corrosion in marine service—commonly specified for 5083/5086 deck plates.

H116 and H321 tempers undergo strain hardening and controlled stabilization treatments ideal for saltwater immersion.

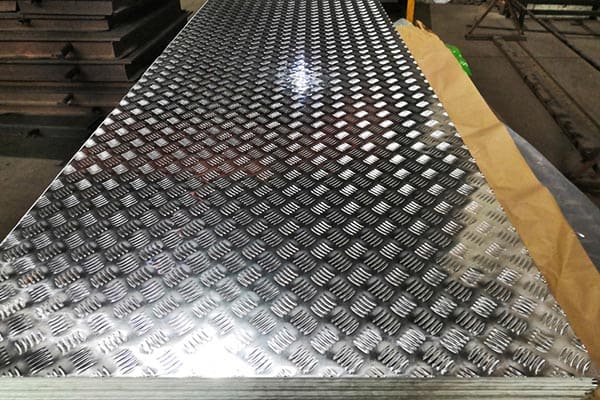

5083 Anti-slip Aluminum Plate For Boat Decking

Thickness and Gauge Requirements

• Standard thickness range: 3mm (1/8″) – 10mm (3/8″) (varies by boat size and load).
• Small boats (≤20ft): 3-4mm sheets (balances weight and strength).
• Medium boats (20-40ft): 4-6mm sheets (supports more passengers/gear).
• Large/commercial boats (>40ft): 6-10mm sheets (heavy-duty structural needs).
• Gauge conversion: 10 gauge = 3.5mm, 8 gauge = 4.1mm, 6 gauge = 5.1mm (ASTM B209 standard).

Surface Finishes

Slip performance data: diamond plate or grit systems typically increase measured coefficient of friction (COF) in wet conditions by ~20–40% versus smooth mill finish. Choose finish based on barefoot comfort, cleaning regime (fish slime, oil), and expected wear.

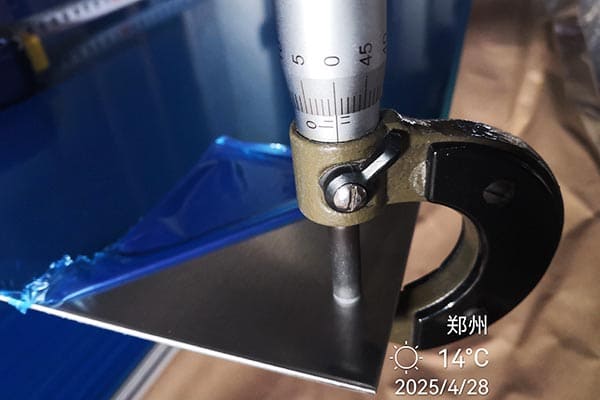

Huasheng Aluminum Plate Thickness Measurement

4. Specification of Aluminum Sheets for Boat Decking

5. Testing, Standards and Certification

Material and Mechanical Standards

• ASTM B209 / B928 — aluminium and aluminium-alloy sheet and plate standards (chemical & mechanical).
• ISO 6892-1 — tensile testing for metallic materials.
• EN 485 series — mechanical properties and tolerances for aluminium sheet/plate.
• AWS D1.2 — welding of aluminium structural members (welding procedure and qualifications).

Corrosion and Durability Testing

• ASTM B117 — neutral salt spray test (comparative, not predictive of field life).
• Intergranular corrosion tests (e.g., ASTM G67) for susceptibility.
• Cyclic corrosion testing and immersion testing for high-risk applications.

Slip Resistance & Human Factors

• ASTM D2047 / ANSI/NFSI B101.1 — test methods for static coefficient of friction. Level of required COF depends on class (commercial passenger decks usually require higher COF).

Classification and Marine Approval Bodies

Specify where required:

• ABS, DNV-GL, Lloyd’s Register, Bureau Veritas — these classify commercial and offshore vessels; they publish rules/notes on materials, welding, corrosion protection and fatigue. Class approval may require supplier traceability and test reports.

Quality Management / Traceability

• ISO 9001 compliance recommended for suppliers; insist on MTRs and batch traceability.
• Document welding procedure specifications (WPS), welder qualifications and NDT records for welded decks.

Anti-slip Boat Decking Display

6. Benefits of Aluminum Sheets for Boat Decking

Durability and Longevity

• Properly specified and fabricated aluminum decks resist rot, termite and fungal attack that affect wood; with appropriate coatings/maintenance they commonly reach 15–30+ years service life in marine environments.

Weight Reduction and Performance Gains

• Aluminum density ≈ 2.7 g/cm³ vs steel ≈ 7.85 g/cm³. For equivalent stiffness, aluminum decks let designers reduce structure weight by ~30–60% compared with steel solutions — improving fuel economy, payload and vessel stability.

Example: replacing 6mm steel deck with 6mm 5083 aluminum (approx.) reduces deck mass by >60% (per same area).

Low Maintenance

• No rot/wood replacement; less frequent protective coatings vs steel. Rinse and periodic inspection/rewaxing usually suffice for recreational craft.

Ease of Installation and Fabrication

• Aluminum is weldable, rivetable and adhesive-bondable. Prefabricated modular panels can be produced off-site and bolted in, reducing dry-dock time.

Cost-Effectiveness (Lifecycle)

• While initial material cost can be higher than plywood, lifecycle cost (materials + maintenance + disposal) is often lower. Example lifecycle saving estimates: 20–40% versus wood decks over 15 years depending on environment and usage.

Eco-Friendliness

• High recyclability (up to 95% recovery), lower lifetime emissions when energy recovery and reuse are optimized.

7. Applications of Aluminum Sheets in Boat Decking

Fishing Boats

• Requirements: slip resistance, easy washdown, resistance to sea chemicals (fish blood, salt), impact resistance.
• Typical solution: 5–6 mm diamond tread 5086-H116 with through-bolted seating bases and sacrificial anodes.

Recreational Boats and Yachts

• Requirements: aesthetics, reduced weight, comfortable walking surfaces.
• Typical solution: 3–4 mm mill finish or anodized panels with teak-look inserts or EVA foam overlays for barefoot comfort.

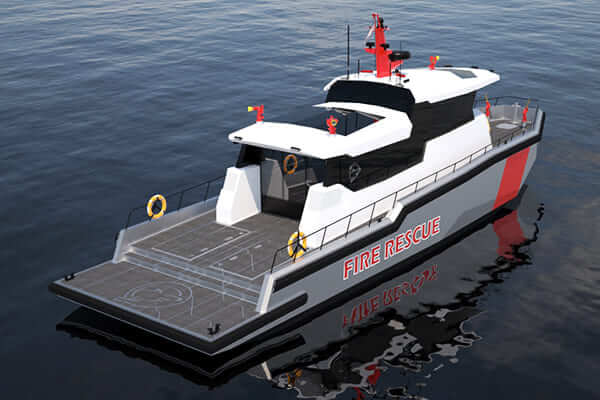

5052 Aluminum Sheets For Yachts

Commercial Vessels (Ferries, Workboats)

• Requirements: structural strength, fatigue resistance, long service intervals, fire/safety compliance.
• Typical solution: 5–8 mm 5083/5086 plate (H116) with non-skid coating and class-approved welding protocols.

Military and Patrol Boats

• Requirements: high impact resistance, low radar signature considerations (coating), rapid repairs.
• Typical solution: thicker aluminum plate with blast/impact considerations; modular replaceable deck panels for rapid field repair.

Houseboats and Pontoons

• Requirements: buoyancy management, lightweight deck loads.
• Typical solution: 2–4 mm 5052 panels over aluminum framing with marine plywood freeboard for interior flooring where desired.

8. Comparison with Other Materials

Selection guidance: choose aluminum when weight, recyclability and long-term durability are priorities; choose FRP for complex curved layouts where material continuity benefits outweigh recyclability; choose plywood only for low-budget, low-duty leisure craft with regular replacement plan.

9. Conclusion

Aluminum sheets for boat decking offer a robust combination of lightweight structure, corrosion resistance, fabrication flexibility and environmental advantages.

Correct alloy/temper selection, adequate thickness for structural needs, quality fabrication (welding and fastening), and considered surface treatment and drainage design are essential to realize the material’s benefits.

With predictable maintenance and proper detailing, aluminum decking is often the most cost-effective long-term solution for modern marine craft.

FAQs

Q1. Is 5083 better than 6061 for decking?

For exposed marine decking, yes: 5083 has superior corrosion resistance in seawater; 6061 is stronger but less corrosion resistant and better used for structural members protected from direct seawater exposure.

Q2. Can I weld aluminum deck panels in the field?

Yes, but adhere to WPS, use qualified welders and control heat input. For cosmetic areas, consider using bolts and sealants to avoid on-site welding issues.

Q3. How to prevent galvanic corrosion where aluminum contacts stainless steel?

Use insulating washers/gaskets (PTFE, nylon), avoid direct electrical contact, and maintain sacrificial anodes for adjacent metals.

Q4. Can aluminum decking be barefoot friendly?

Yes — with non-skid coatings, teak inlays, or EVA foam overlays. Diamond plate is durable but can be uncomfortable barefoot.

Q5. Is aluminum decking noisy or slippery?

Aluminum itself is not inherently noisy when properly insulated. Slip risk is managed via tread patterns or non-skid coatings; cleaning regimes are essential to remove slippery contaminants.

Q6. How thick should my aluminum boat decking be?

Pick 2.0–2.5 mm for small boats. Use 2.5–3.0 mm for pontoons. Choose 3.0 mm or more for commercial vessels. Thicker sheets handle more weight and rough use.
