1. Introduction

3105-O Aluminum Roll for cake tray is a specialized, high-performance raw material engineered for the manufacturing of premium-quality aluminum cake trays and bakeware.

As a 3xxx series aluminum-manganese-magnesium (Al-Mn-Mg) alloy, 3105 offers a significant upgrade in strength and rigidity compared to common foil alloys like 8011.

The ‘O’ (fully annealed) temper is a critical specification, endowing the material with maximum ductility and excellent formability, which is essential for the high-speed stamping process that creates the tray’s complex shape.

This combination of moderate strength (tensile strength of ~115-155 MPa) and superior workability, along with aluminum’s inherent high thermal conductivity and food-safe nature, makes it the ideal substrate.

It allows for the production of durable, warp-resistant cake trays that provide uniform heat distribution for perfect baking results, positioning it as the material of choice for high-quality disposable and reusable bakeware.

3105-O Aluminum Roll for Cake Tray

2. Understanding 3105-O Aluminum Roll

The designation “3105-O” is a precise technical specification that defines both the material’s chemistry and its mechanical state.

• 3105 Alloy: This is a member of the 3xxx series of aluminum alloys.
  • Composition: Its primary alloying elements are Manganese (Mn) and Magnesium (Mg). Compared to the more common 3003 alloy, the addition of magnesium provides a notable increase in strength and corrosion resistance.
  • Positioning: It is a performance “step-up” from softer, lower-strength alloys like the 1xxx or 8xxx series, designed for applications where more rigidity and durability are required.
• ‘O’ Temper: This signifies that the aluminum is in its fully annealed state.
  • Meaning: The material has been heat-treated to relieve all internal stresses from the rolling process, making it as soft and ductile (formable) as possible.
  • Critical Importance: The complex shapes of cake trays, with their rims, corners, and potential stiffening ribs, are created through a high-speed stamping or “deep-drawing” process. The ‘O’ temper is essential for the material to stretch and flow into the die without cracking or tearing.

3. Properties of 3105-O Aluminum Roll

3.1 Mechanical Properties

The O temper condition delivers the specific mechanical profile required for cake tray manufacturing：

These properties position 3105-O between pure aluminum (1050-O: 60–80 MPa tensile) and work-hardened tempers (3105-H14: 150–200 MPa).

The 20% elongation specifically enables the 2.0:1 draw ratios required for deep cake pans, while the 110–145 MPa tensile strength ensures structural stability during handling and shipping.

3.2 Physical and Thermal Properties

The thermal conductivity of 160 W/m·K proves particularly critical for cake tray performance.

This value—approximately half that of pure aluminum (237 W/m·K) but double that of stainless steel (16 W/m·K)—ensures rapid, uniform heat distribution across the baking surface.

Cakes bake evenly without the burning or undercooking associated with hot spots in lower-conductivity materials.

3.3 Corrosion Resistance and Food Safety

The 3105 alloy naturally forms a protective aluminum oxide (Al₂O₃) layer approximately 4–10 nanometers thick. This passive film provides:

• Chemical Stability: Resistance to acidic batters (pH 3–5) and alkaline cleaners (pH 10–12)
• Non-Reactivity: No metallic taste transfer to baked goods
• Antimicrobial Surface: Aluminum ions inhibit bacterial growth on tray surfaces

4. Manufacturing Process of 3105-O Aluminum Roll for Cake Tray

4.1 Casting and Hot Rolling

The production sequence begins with direct chill (DC) casting of 6–8mm thick sheet ingots. Quality producers implement:

• Melt Refining: Rotary degassing removes hydrogen to <0.15 ml/100g Al, preventing porosity that would create surface defects in finished trays
• Ceramic Filtration: 30–50 ppi filters eliminate inclusions >20μm that could initiate cracks during deep drawing
• Grain Refinement: Titanium addition (0.01–0.03%) ensures ASTM 5–7 grain size in cast slab, promoting uniform deformation in subsequent operations

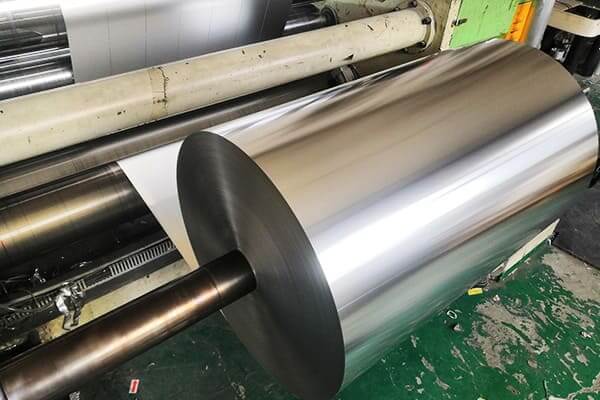

3105-O Aluminum Roll Production

4.2 Cold Rolling to Final Gauge

Multi-stand tandem cold mills achieve precise thickness control for cake tray applications:

4.3 Annealing to O Temper

The critical transformation to O temper occurs in continuous annealing furnaces:

• Heating Rate: 50–80°C/minute to 340–380°C
• Soak Time: 4–6 hours at temperature for complete recrystallization
• Atmosphere: Nitrogen-based with dew point <-40°C to prevent oxidation
• Cooling: Controlled at 30–50°C/hour to 150°C, then air cool

4.4 Surface Finishing and Coil Preparation

Post-annealing processes prepare the coil for cake tray stamping:

• Tension Leveling: Eliminates coil set and improves flatness to <10 I-units
• Degreasing: Alkaline cleaning reduces surface oil to <10 mg/m² for coating adhesion
• Edge Trimming: Precision slitting to 100–1,600mm widths with burr <0.05mm
• Protective Film: Polyethylene lamination prevents handling scratches during transport

5. Core Advantages of 3105-O Aluminum Roll for Cake Trays

The selection of 3105-O aluminum roll as the base material for cake trays is not an arbitrary decision but a strategic choice aimed at elevating the final product’s performance, user experience, and market competitiveness.

Its core advantages are multi-dimensional, collectively forming a powerful value proposition.

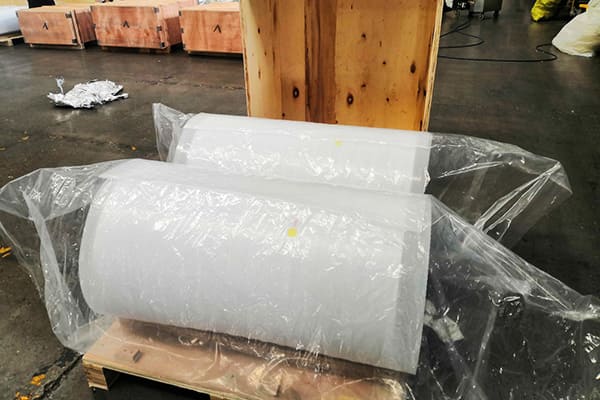

3105-O Aluminum Roll Packaged by Huasheng

5.1 Enhanced Structural Rigidity & Durability

This is the most significant advantage of 3105 over softer alloys like 8011 or pure aluminum.

• Data-Driven Superiority: The tensile strength of the 3105-O alloy typically falls within the range of 115-155 MPa, which is notably higher than that of 8011-O (approx. 80-120 MPa). This means that at the same thickness, the 3105 alloy is inherently “tougher.”
• Real-World User Experience: This increase in strength translates directly into a superior feel and performance in the final product. When a consumer or baker handles a cake tray made from 3105, it feels “solid” and “reliable.” The tray is far less prone to bending, twisting, or deforming when filled with heavy batter or a finished cake. This resistance to deformation is critical throughout the entire process—handling, baking, and depanning—and it dramatically reduces the risk of a damaged cake due to a flimsy container.
• Foundation for Reusability: It is this enhanced durability that allows trays made from 3105 to maintain their original shape even after washing, providing a solid material basis for products positioned as “reusable.”

5.2 Superior Baking Performance

The physical nature of aluminum provides this advantage, and the selected thickness ensures it.

• Efficient and Uniform Heat Transfer: 3105 aluminum alloy possesses a high thermal conductivity of approximately 155 W/m·K. During the baking process, this means that heat is transferred rapidly from the oven’s air to the tray and distributed uniformly to every corner in contact with the cake batter.
• The Perfect Bake: Uniform heat distribution effectively eliminates “hot spots,” preventing the cake from burning at the edges while the center remains uncooked. It ensures the cake heats consistently from the inside out, resulting in an even crumb structure, a level top, and an appealing golden-brown crust. This precise management of heat is the key to achieving professional-grade baking results.

5.3 Absolute Food-Grade Safety

In any food-contact application, safety is the non-negotiable bottom line.

• Inherent Chemical Inertness: The chemical composition of 3105 aluminum alloy is stable, non-toxic, odorless, and tasteless. It does not react with food, and even when in contact with acidic ingredients (like lemon or berries), it does not leach harmful substances. It is fully compliant with the world’s most stringent food contact material regulations, including FDA, LFGB, and EU standards.
• Reliable Platform for Protective Coatings: The smooth, clean surface of a 3105 aluminum roll is the ideal substrate for applying various food-grade coatings (such as non-stick coatings or colored decorative layers). These coatings not only enhance functionality but also provide an additional layer of insulation, creating a dual-guarantee of safety.

5.4 High Production Efficiency & Design Freedom

The ‘O’ temper is the key to achieving this advantage.

• Engineered for High-Speed Stamping: The exceptional ductility of 3105-O (elongation ≥20%) means it can be smoothly deep-drawn in high-speed, high-tonnage stamping presses. A flat aluminum roll can be instantaneously formed into a geometrically complex cake tray, including vertical sidewalls, a flat base, and features that significantly enhance structural strength like a curled rim and stiffening ribs.
• Low Scrap Rate & High Consistency: This excellent formability ensures the stability of large-scale automated production with an extremely low scrap rate, which effectively controls manufacturing costs.

5.5 Significant Aesthetic Potential

High-quality bakeware is not just a tool; it is part of the kitchen’s aesthetic.

• Clean Metallic Finish: The 3105 aluminum roll itself has a bright, uniform metallic luster, which can be used to create bakeware with a modern and professional look.
• Rich Coating Options: It is the ideal substrate for pre-painted aluminum coil. Manufacturers can supply 3105-O aluminum rolls that are pre-coated with a variety of colors (e.g., champagne gold, obsidian black) or with a non-stick (PTFE) layer. This enables downstream cake tray manufacturers to easily produce colorful, high-end, and easy-to-clean differentiated products, enhancing their market appeal and brand value.

6. Applications of 3105-O Aluminum Roll for Cake Tray

The versatility of 3105-O aluminum roll stems from its balance of formability, surface quality, thermal performance and food compatibility.

In practice, this allows the same base material to serve a wide range of baking, storage and specialty food applications with only changes in gauge, forming design and surface treatment.

6.1 Cake Trays and Baking Molds

The most common application of 3105-O aluminum roll is in the production of disposable and semi-rigid cake trays and baking molds used by bakeries, food manufacturers and retailers.

Typical products

• Round, square and rectangular cake bases
• Deep-drawn cake molds with smooth or fluted walls
• Single-use baking trays for sponge cakes, cheesecakes and tarts
• Decorative trays with embossed patterns or branded logos

Typical thickness range

• 0.20–0.40 mm for disposable cake trays
• 0.40–0.60 mm for deeper or reusable molds requiring higher rigidity

6.2 Food Storage and Packaging

Beyond baking, 3105-O aluminum roll is widely used in food storage and packaging formats where barrier performance, appearance and handling strength are required.

Common applications

• Ready-to-eat cake and pastry containers
• Bakery takeaway trays with lids (paperboard or polymer)
• Catering trays for chilled or reheated desserts
• Intermediate packaging for in-plant handling and transport

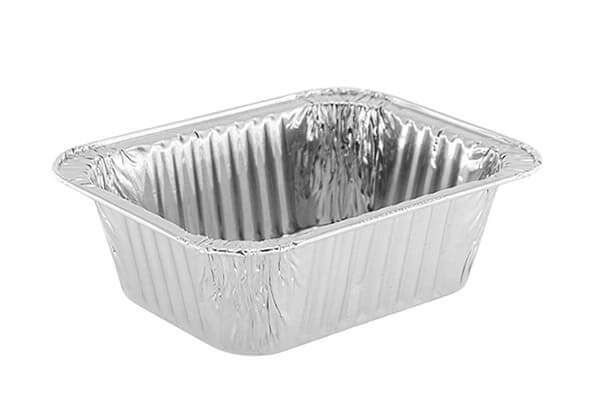

Food Storage used 3105-O Aluminum Roll

6.3 Specialty Baking Applications

3105-O aluminum roll is also chosen for niche or higher-performance baking and confectionery applications where standard materials are insufficient.

Examples

• Custom-shaped molds for premium or seasonal cakes
• Multi-cavity baking forms for industrial-scale dessert production
• Decorative display trays for wedding cakes and confectionery showcases
• Trays for cold-set desserts (mousse, gelatin-based cakes) requiring dimensional precision and smooth surfaces

7. Industry Standards and Certifications

When specifying and procuring 3105-O material and finished trays, reference common standards and certifications:

• Material / chemical & mechanical standards: EN 573-3 (chemical composition), EN 485-2 / ISO 6361 (mechanical properties for sheet & strip), ASTM B209 (aluminum and aluminum-alloy sheet and plate) — verify which standard your supplier’s datasheet follows.
• Food safety & management systems: ISO 22000 or FSSC 22000 (for food contact packaging operations), and supplier declarations for food contact compliance (EU/Regulation 10/2011, U.S. FDA 21 CFR for food contact materials, as applicable).
• Quality system: ISO 9001 (supplier process control) is recommended.
• Environmental & social certifications: recycling credentials, responsible sourcing statements, and CO₂/carbon footprint reporting are increasingly requested by retailers.

8. Compared with other materials

9. Conclusion

3105-O Aluminum Roll for Cake Tray is a pragmatic, widely-used material for cake trays that combines excellent formability, attractive surface finish options, reasonable cost and compatibility with food-grade coatings and processing.

For manufacturers, the keys to success include careful incoming material checks (MTCs), correct tooling and lubrication practices, staged forming where necessary, and validation of coating adhesion and oven performance where required.

By balancing gauge selection (e.g., 0.20–0.50 mm depending on product and handling) against design stiffness requirements, tray producers can optimize cost, weight and consumer experience.

FAQs

Q1 — What gauges of 3105-O are commonly used for cake trays?
Common nominal gauges range from ~0.18 mm to 0.6 mm, with many disposable trays in the 0.20–0.40 mm band. Choose thicker gauges for heavy loads or stacking strength; choose thinner gauges to save cost and weight for shallow or decorative trays.

Q2 — Is 3105-O suitable for oven use?
The alloy itself tolerates typical reheating temperatures; however, the critical point is the coating or lacquer used for finishing. Only use coatings rated for the target oven temperature and validate tray performance through thermal cycling tests.

Q3 — What are the principal QA checks when sourcing 3105-O coil?
Request MTC (chemical and mechanical), check thickness tolerance, surface finish and presence/condition of any primer/lacquer. Specify acceptable limits for coil geometry and pinholes/defects if visible finish is critical.

Q4 — How does changing gauge affect tray mass?
Because mass scales linearly with thickness, reducing sheet thickness from 0.50 mm to 0.30 mm for the same tray area reduces aluminum mass by roughly 40% (example: a 0.05 m² tray would fall from ~67.5 g → ~40.5 g). Balance weight reduction against stiffness and dent resistance requirements.

Q5 — How recyclable are cake trays made from 3105?
Aluminum is highly recyclable. Uncoated or simply lacquered aluminum trays are usually accepted in aluminum recycling streams. Complex laminates or mixed-material coatings can complicate recycling — prefer mono-material or easily separable coatings where recycling is a priority.
