1. Introduction

Aluminium foil for chocolate packaging remains the industry standard for preserving flavor, structure and visual appeal across the supply chain.

Chocolate is highly sensitive to oxygen, moisture, light and temperature excursions; the right packaging preserves aroma and texture, prevents fat bloom, and presents a premium brand impression.

This article delivers a deep, multi-disciplinary analysis — materials science, manufacturing, barrier performance, design choices, regulatory controls and sustainability — and includes quantitative data and practical recommendations for packaging engineers, brand product managers and co-packers.

Aluminium Foil for Chocolate Packaging

2. Material Science of Chocolate Packaging Aluminium Foil

Aluminium foil’s performance in chocolate packaging stems from its materials-science fundamentals, which define key characteristics such as barrier performance, formability, safety, and compatibility with industrial packaging lines.

2.1 Grades of Aluminium Foil for Chocolate Packaging

AA1235 Aluminium Foil (Purity ≥ 99.35%)

• Most common alloy for chocolate wrapping foil
• Ultra-soft (O temper) for excellent flexibility and tight wrapping
• Superior pinhole resistance at thin gauges
• Very low levels of Fe and Si, reducing brittleness

AA1145 Aluminium Foil (Purity ≥ 99.45%)

• Higher purity than AA1235
• Excellent corrosion resistance
• Used when enhanced chemical inertness is required (e.g., premium chocolate)

AA8011 Aluminium Foil (Al-Fe-Si Alloy)

• Used in some laminates where higher strength is needed
• Contains 0.5–1% Fe, 0.3–0.8% Si
• Not as flexible as 1xxx series but offers better mechanical strength for high-speed forming

2.2 Aluminium Foil Thickness Selection

Thickness is a critical determinant of barrier level, mechanical performance, and cost. Standard thickness categories for chocolate packaging include:

6–9 μm (Ultra-Thin Foil)

• Used for high-volume, low-cost chocolate wrappers
• Highest flexibility
• Slightly increased risk of pinholes
• Best for flow-wrap machines

10–12 μm (Premium Inner Wrap Foil)

• Most widely used thickness for chocolate bars
• Ideal balance of:
  • Barrier properties
  • Fold memory
  • Strength
  • Cost
• Excellent for embossing and precision folding

12–20 μm (Decorative or Embossed Foils)

• Used for luxury chocolates and pralines
• Supports deeper embossing patterns
• Higher mechanical resistance
• Suitable for hand-wrapped or boutique premium chocolates

Thickness vs. Barrier Performance (Approximate)

2.3 Coatings & lacquers (functional finishes)

• Heat-seal lacquers: Enable hermetic sealing when foil is used as a primary inner layer (often applied on the food-contact side or on the opposing PE layer in laminates). Heat-seal strength is critical for flow wrappers and pillow wrappers.
• Food-grade protective lacquers / varnishes: Provide a non-reactive barrier between chocolate and metal (used selectively where flavor transfer is a concern). Lacquers must be non-migratory and compliant with food-contact regulations.
• Print primers & overprint varnishes: Improve ink adhesion and scratch resistance for outer decorative surfaces.
• Anti-tarnish / anti-stain treatments: Extend shelf presentation for uncoated metallic foils.

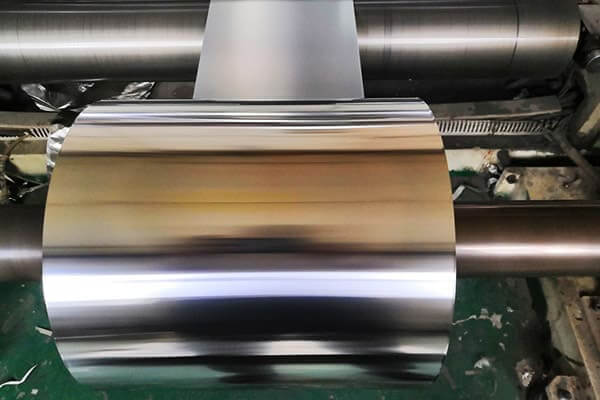

1235 Aluminium Foil Production

2.4 Food Safety Compliance

Aluminium foil used for chocolate packaging must comply with:

• EU 1935/2004 (materials intended for food contact)
• EN 602 (aluminium and aluminium alloy foil for food wrapping)
• FDA 21 CFR 175.300 (resinous and polymeric coatings)
• ISO 21469 (hygiene requirements for lubricants used in manufacturing)

3. Benefits of Aluminium Foil for Chocolate Packaging

3.1 Superior barrier protection

• Light: prevents light-induced fat oxidation and color changes.
• Oxygen: near-zero oxygen permeability preserves volatile flavor compounds and delays rancidification—critical for nut inclusions and flavored fillings.
• Moisture and aroma: minimal moisture exchange and aroma retention when properly sealed.

Data point: A continuous aluminium layer can reduce oxygen transmission to effectively 0 cm³/m²·day (practically immeasurable), whereas typical polymer films may have OTRs orders of magnitude higher (e.g., PET ~1–10 cm³/m²·day depending on thickness).

3.2 Lightweight and flexible design

• Material efficiency: 10 μm foil has areal mass ≈ 27 g/m² (2.7 g/cm³ × 0.001 cm thickness). This yields minimal weight addition per bar and contributes to lower transport CO₂ per unit.
• Conformability: Foil closely hugs product geometry, minimizing trapped air pockets that accelerate degradation.

3.3 Cost-effectiveness

• Efficient forming and high web speeds reduce converting costs. High volumes benefit from coil-coated or pre-printed webs to eliminate secondary finishing steps. Well-controlled lines can achieve very low scrap rates, and modern high-speed wrappers often run at hundreds of wraps per minute (depending on the machine).

3.4 Aesthetic appeal and brand positioning

• Metallic sheen, embossing and crisp folds communicate premium quality. Foil enables combinations of metallics with high-definition printing on outer webs for luxury presentation.

3.5 Environmentally friendly options

• Recyclability: Aluminium is infinitely recyclable; recycling aluminium uses ≈ 95% less energy than primary aluminium production. Designing mono-material laminates (foil + PE) can improve recyclability relative to mixed paper/plastic/foil stacks.
• Recycled content: Suppliers can provide post-industrial or post-consumer recycled content to lower embodied carbon.

Advantages of Aluminium Foil for Chocolate Packaging

4. Typical Constructions & Laminates Used for Chocolate

Chocolate packaging requires precise control of barrier performance, mechanical strength, formability, and aesthetic presentation.

Because pure aluminium foil is extremely thin and delicate at typical chocolate-packaging gauges (6–20 μm), manufacturers often combine it with paper, polymer films, or special coatings to create optimized laminates.

Engineers design these structures to provide multi-functional protection during production, distribution, and retail display.

5. Manufacturing Process of Aluminium Foil for Chocolate Packaging

5.1 Raw Material Production

1. Ingot Casting: Aluminium ingots (1235 or 8011 alloy) are cast at 700°C, with strict composition control (e.g., Fe content ±0.05% for 8011).
2. Hot Rolling: Ingots are rolled into 3-5mm thick sheets at 400°C, reducing thickness by 90% via multiple passes.
3. Cold Rolling: Sheets are further rolled to 0.1-0.2mm thick at room temperature, with intermediate annealing (350°C for 2 hours) to maintain ductility.
4. Foil Rolling: Cold-rolled sheets are passed through foil mills, with thickness reduced to 6-15 microns. Two sheets are rolled together (tandem rolling) to achieve uniform thickness, then separated.

5.2 Coating and Surface Treatment

1. Cleaning: Foils are degreased with alkaline solutions to remove rolling oils, ensuring coating adhesion.
2. Coating Application: Anti-stick (wax/acrylic) or barrier (PVdC/PLA) coatings are applied via gravure or slot-die coating, with thickness controlled to ±0.5 gsm.
3. Drying/Curing: Operators dry wax-coated foils at 80–120 °C or cure acrylic coatings with UV light, ensuring residual solvents stay within FDA limits (≤5 mg/m²).

5.3 Printing and Embossing

1. Printing: Flexographic printing uses food-grade inks (compliant with FDA 21 CFR Part 176.170) to apply designs, with registration accuracy ±0.1mm for multi-color prints.
2. Embossing: Foils pass through engraved rollers at 60-80°C, creating 3D patterns with depth 5-10 microns. Embossing pressure is controlled to avoid foil tearing (typically 50-70 N/cm²).
3. Slitting and Rewinding: Operators slit the finished foils to customer-specified widths (100–1000 mm) and rewind them onto 76 mm cores for delivery.

6. Applications of Aluminium Foil for Chocolate Packaging

6.1 Individual Wrapping

Used for truffles, pralines, and bonbons. 6-8 micron wax-coated 1235 aluminium foil is standard, as it wraps tightly around irregular shapes and peels cleanly.

Brands like Godiva use gold-embossed foil for individual truffles, enhancing gifting appeal. This application accounts for 35% of chocolate foil usage (Confectionery Packaging Association).

6.2 Combination Packaging

Chocolate bars and tablets use foil as an inner barrier layer, paired with paperboard outer packaging. 10-12 micron 8011 aluminium foil (PVdC-coated) is common, providing moisture protection while the paperboard offers structural support and branding space.

Examples include Cadbury Dairy Milk (Al/Paper laminate) and Hershey’s Milk Chocolate (Al/PET/PE laminate).

6.3 Luxury Chocolate Packaging

High-end assortments (e.g., Lindt Excellence, Neuhaus) use 12-15 micron foils in laminates with embossed or colored finishes.

Foil liners in gift boxes prevent moisture intrusion from cardboard, while metallic foils on outer boxes convey luxury.

The luxury segment drives 40% of chocolate foil revenue, despite accounting for only 15% of volume (Euromonitor).

7. Comparison with Other Packaging Materials

8. Conclusion

Aluminium foil continues to dominate chocolate packaging due to its unique combination of barrier performance, flexibility, food safety, aesthetic versatility, and recyclability.

From individual bonbons to luxury boxed chocolates, its ability to protect against oxidation, moisture ingress, aroma loss, and physical damage significantly extends shelf life and ensures consistent product quality.

Backed by robust materials science, advanced manufacturing technologies, and sustainable innovations, aluminium foil remains an indispensable material in the global chocolate industry.

As consumer expectations rise and brands seek high-quality packaging solutions, aluminium foil will continue to provide unmatched value and performance.

FAQs

Q1 — Is aluminium foil safe in direct contact with chocolate?

Yes. Food-grade aluminium foil manufactured and coated per regional food-contact regulations (e.g., EU Regulation EC 1935/2004, FDA food-contact guidance) is safe for direct contact with chocolate. Ensure coatings/lacquers and adhesives are tested for migration into fatty foods.

Q2 — What foil thickness prevents punctures in automated lines?

There is no universal thickness — line parameters and product geometry matter — but 8–12 μm is common for inner wraps on high-speed lines; for fragile or heavily handled items, 12–16 μm reduces puncture probability.

Q3 — Can aluminium foil stop fat bloom?

Foil reduces environmental triggers for fat bloom by blocking light and oxygen; however, bloom prevention depends primarily on correct tempering, formulation, and temperature control during storage and transport.

Q4 — Are foil laminates recyclable?

Pure aluminium foil is recyclable. Composite laminates (foil bonded to paper or multiple plastics) are harder to recycle and often require specialized streams; choosing mono-material laminates improves circularity in many markets.

Q5 — What testing should be done on chocolate packs using foil?

Recommend: seal integrity, oxygen & moisture transmission (where measurable), migration testing with fatty simulants, puncture/tear testing, accelerated shelf-life testing (elevated T and RH), and sensory panels for off-flavor detection.

Q6 — Why is foil better than plastic for chocolate?

Foil’s near-zero OTR and MVTR extend shelf life by 2-4 times, prevents bloating and rancidity, and blocks light—issues plastic films (even metallized ones) cannot fully address.

Q7 —Can aluminium foil be printed with food-grade inks?

Yes. Flexographic printing uses FDA-compliant water-based or solvent-based inks, with primers ensuring ink adhesion and no migration to chocolate.
